Description
The YAESU FTA-750L Combines tradition with innovation. Born from a history of high quality communications the FTA-750L now includes a 66 channel GPS receiver for reliable navigation. Boasting an oversize full dot matrix LCD display, the FTA-750L Airband Transceiver / GPS provides full communication on the Aircraft communications Band and additionally provides VOR and ILS navigation features on the “NAV” band, and waypoint navigation with the built in GPS receiver.
The FTA-750L is capable of programming up to 200 memory channels with a quick and easy channel recall feature. The brand new easy to operate menu system is icon driven making it simple to navigate through all of the powerful features this transceiver / GPS has to offer. Additionally the FTA-750L can easily be reprogrammed in minutes using the optional PC Programming software and the supplied USB programming cable.
Integrated 66 Channel WAAS GPS receiver
The FTA-750L features an integrated 66 Channel WAAS GPS receiver providing the capability of quickly storing current position information as well as manually entering in waypoints for reliable navigation. When a waypoint is activated the navigation screen features a compass display with Bearing, Course over ground, distance and speed information.
GPS Position Logging operation
The FTA-750L includes a GPS Logging feature when activated automatically stores your position information at preset intervals. This is a great feature when backtracking is necessary.
ILS (Localizer & Glide Slope) and VOR Navigation
When the FTA-750L receives a VOR signal the display will automatically switch to the Navigation band screen, with CDI (Course Deviation Indicator) based on the received VOR signal.

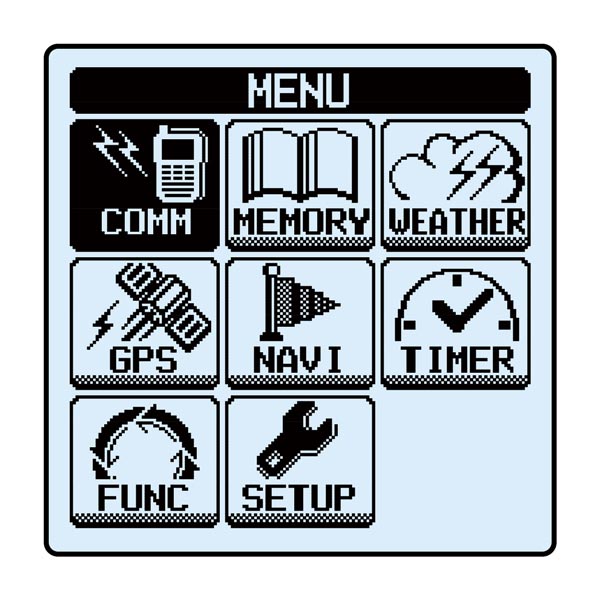

Easy to operate menu system
The FTA-750 comes configured with an easy to operate icon driven menu system. The displays and menu settings are logically configured for a more intuitive user interface.

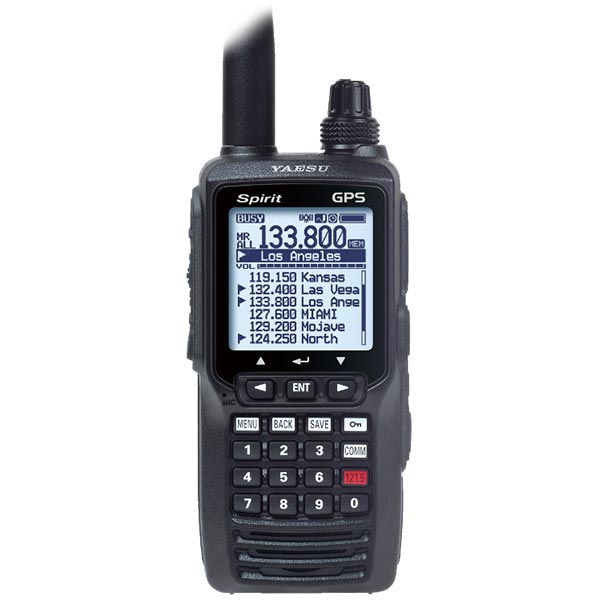

Huge Dot Matrix Display (160 x 160 dots)
The FTA-750 features a huge 43 x 43mm full dot matrix LCD display with full backlight and dimmer. The high resolution display makes it easier to view all the great features the FTA-750 has to offer.
200 Channel Memory bank
The FTA-750 can store up to 200 Memory channels for quick and easy retrieval. With the capability of using up to 15 Alphanumeric characters per name the FTA-750 allows for a better channel description.
Now Meets MIL-STD-810F
The FTA-750 has now been tested and complies with the Military Standard MIL-STD-810F. Similar to commercial Land Mobile radios, all current Yaesu Airband Transceivers have been tested for durability against Low temperatures, High temperatures, Shock, Vibration, Dust and Rain, ensuring many years of rugged use.
PC Programmable
The FTA-750 channel configurations can easily be reprogrammed using the supplied USB programming cable and the YCE01 programming software.
Specifications
- High-Capacity 2000mAh Li-Ion battery
- Channel spacing: 8.33kHz / 25kHz
- Output: 5 watt TX power output
- Size: 62mm x 133mm x 34mm
- Weight: 410g

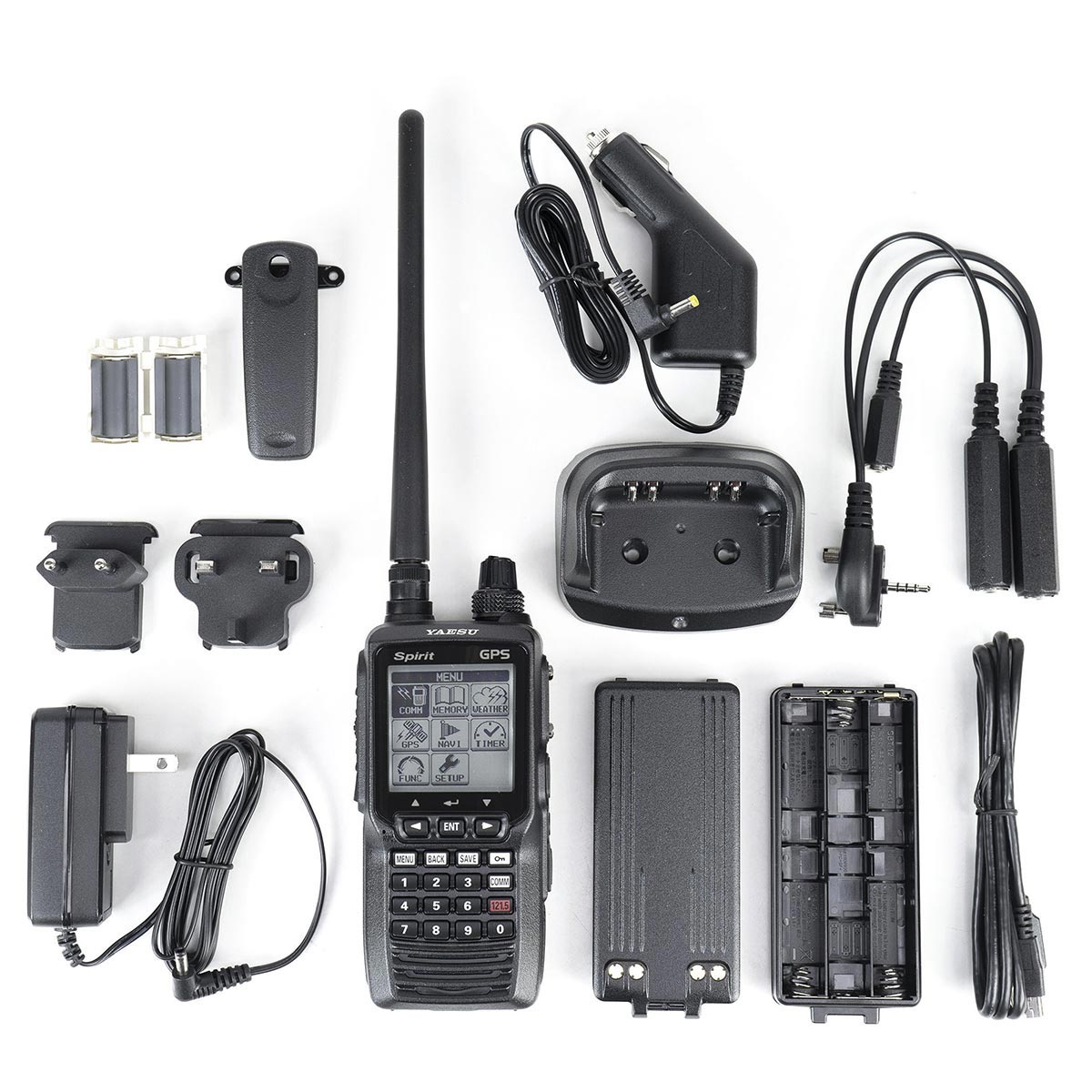

Included in delivery
- FTA-750L 8.33kHz Airband transceiver (w/ GPS + ILS + VOR)
- SBR-12 Li-ion battery pack
- SBT-12 Battery tray (6 x AA)
- SHB-11 Belt clip
- SBH-11 Charging cradle
- SAD-11 AC (230V) Wall charger
- SDD-12 DC (car)charger
- SCU-15 Headset adapter cable
- USB programming cable
- Operating Manual
- Warranty Card
Warranty
The Yaesu FTA-750L is made in Japan and backed by an industry leading 3 year warranty.
Video
Using a GA Headset with the Yaesu FTA-450, 550 and 750L
Setting 8.33 kHz channel spacing on the Yaesu FTA-450, 550 and 750L
Receiving a VOR signal on the Yaesu FTA-550 or FTA-750L
Manual
