MH EDS O2D1 – comparable kit for Jonker JS3 & JS4

 1.235,00 1.245,00

ASE EDS-O2D1 comparable kit for Jonker JS3 and JS4 sailplanes

with your choice between 1.5 liter and 2 liter oxygen cylinder:

Product total
Options total
Grand total
SKU: O2D1-248-1P-F-1 Categories: ,

Description

The MOUNTAIN HIGH EDS kit is a Jonker Sailplanes factory approved O2 system for use in:

  • JS3 (all serials)
  • JS4 (all serials)

The Mountain High comparable aluminium 1.5 or 2 liter oxygen cylinder will fit in the standard oxygen storage tube of the JS3 and JS4. They are both shorter than the length of the AL-415 which is 45 cm and their diameter is 111 mm; the same as the Mountain High cylinders.

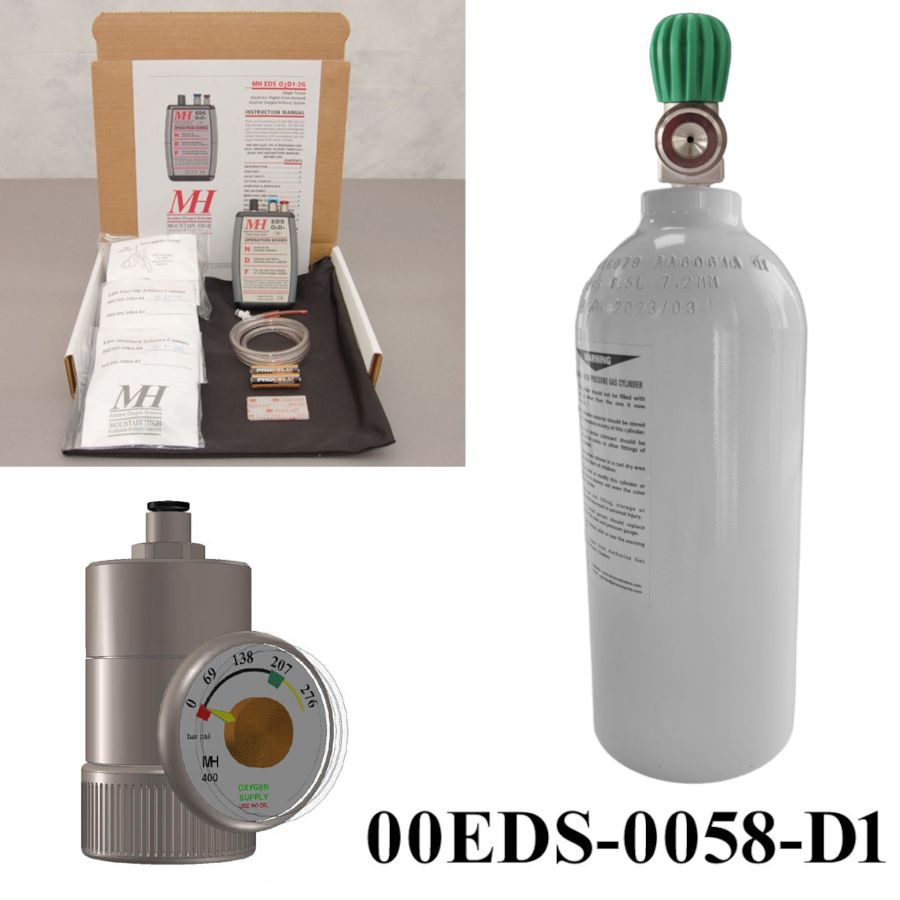

ASE EDS-O2D1 Jonker kit contains:

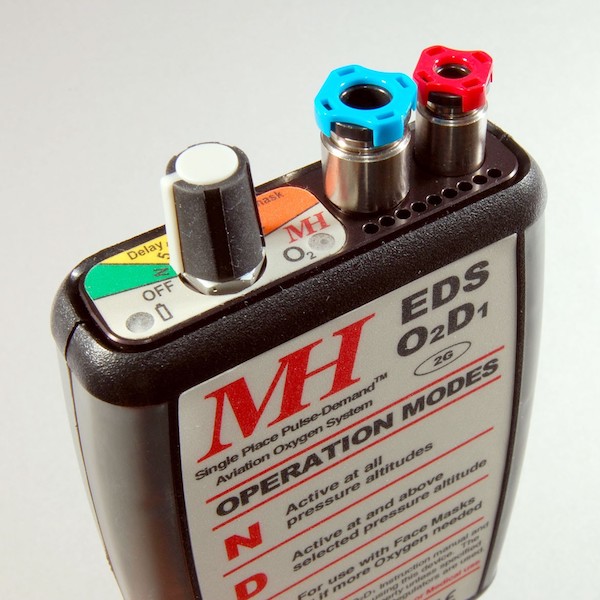

  • EDS O2D1-2G unit
  • Al-Can oxygen cylinder
  • Pressure regulator with gauge

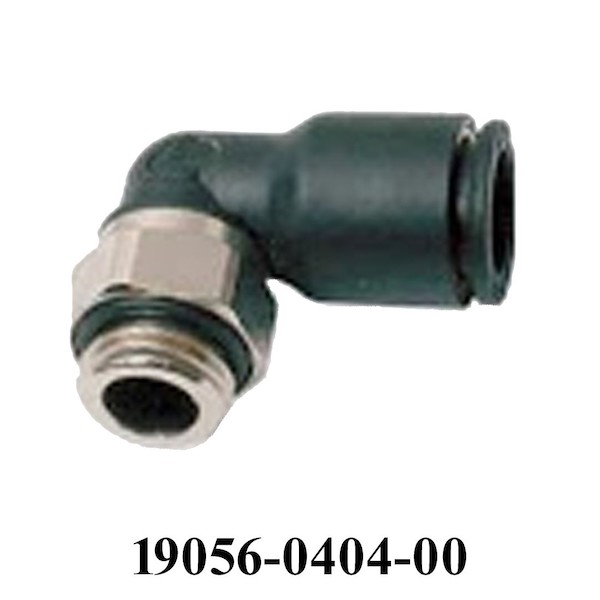

  • Extra regulator fitting one touch 4mm – 90º
  • Red PU O2 tube for EDS system – 1,5 meter
  • 2 EDS cannulas (one flare tip, 1 regular)
  • 1 EDS mask

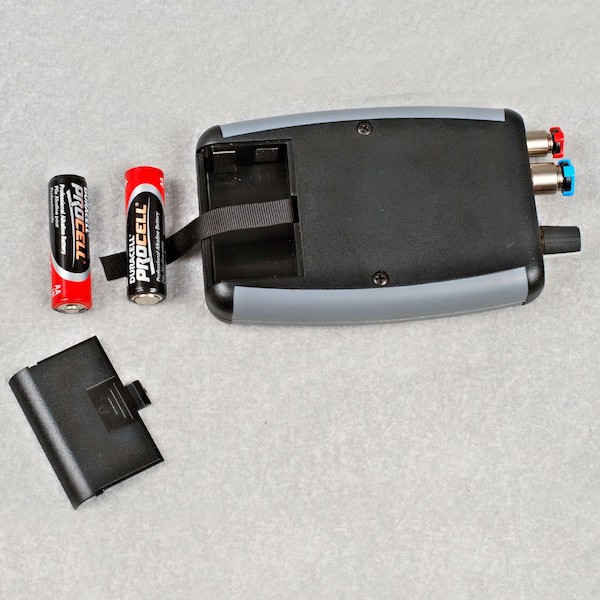

  • 2 AA batteries
  • 3M Dual Lock (for fixing)
  • EDS bag & user manual



Al-Can aluminum oxygen cylinder

Specification 1.5 liter:

  • Comparable with MH AL-248
  • Capacity 300 L
  • Pressure 200 bar
  • Length 35 cm
  • (Length AL-248 = 31 cm)
  • Ø cylinder 111 mm
  • Empty weight 2,2 kg
  • valve DIN-477 Euro-norm
  • inspection interval 10 years

Specification 2 liter:

  • Comparable with MH CFF-480/ AL-415
  • Capacity 400 L
  • Pressure 200 bar
  • Length 41 cm
  • (Length CFF-480 = 41 cm)
  • (Length AL-415 = 45 cm)
  • Ø cylinder 111 mm
  • Empty weight 2,7 kg
  • valve DIN-477 Euro-norm
  • inspection interval 10 years
THE LENGTH IS MEASURED FROM BOTTOM UP TO AND INCLUDING THE OPENING VALVE.

These O2 cylinders have a thicker cylinder wall than the Mountain High aluminium cylinders and can be filled up to the standard European filling pressure of 3000 psi / 200 bar, in stead of 2015 psi / 135 bar for the Mountain High aluminium cylinders.

They have an inspection interval 10 years compared to 5 years for the Mountain High cylinders.

Manual:

MH-EDS-2G-User-Manual

Additional information

Weight 3 kg
Size

1.5 liter, 2 liter
