Laminar aerotec BWS Electric
The best‐selling motor in a box. Suitable for many common glider types.
These features are convincing:
- short cleaning time of approx. 15 seconds per sash side ‐ even at high speeds
- three safety features: rope tension sensor, slip clutch and automatic shutdown on overload
- span adjustment (option)
- simultaneous cleaning with both bug cleaners possible
- various mounting plates for easy and flexible installation
- tear‐resistant Dyneema line (return line)
Technical data:
- dimension length x width x height: 151.6 x 56.7 x 72 mm
- Weight of both electric winches including accessories: 1,600 grams
- Voltage: 10 ‐ 14.5 Volt
- Power consumption standby: 0 A
- Current consumption during operation: unwind 2.2 A, rewind 5.5 A
- Max. current consumption: 8.5 A
- Fuse electric winch: 10 A
- Fuse battery minimum: 15 A
- Cleaning speed: approx. 1m/s at 120‐180 km/h
- Rope length: standard for gliders up to 20 m wingspan = 12 m (overlength on request)

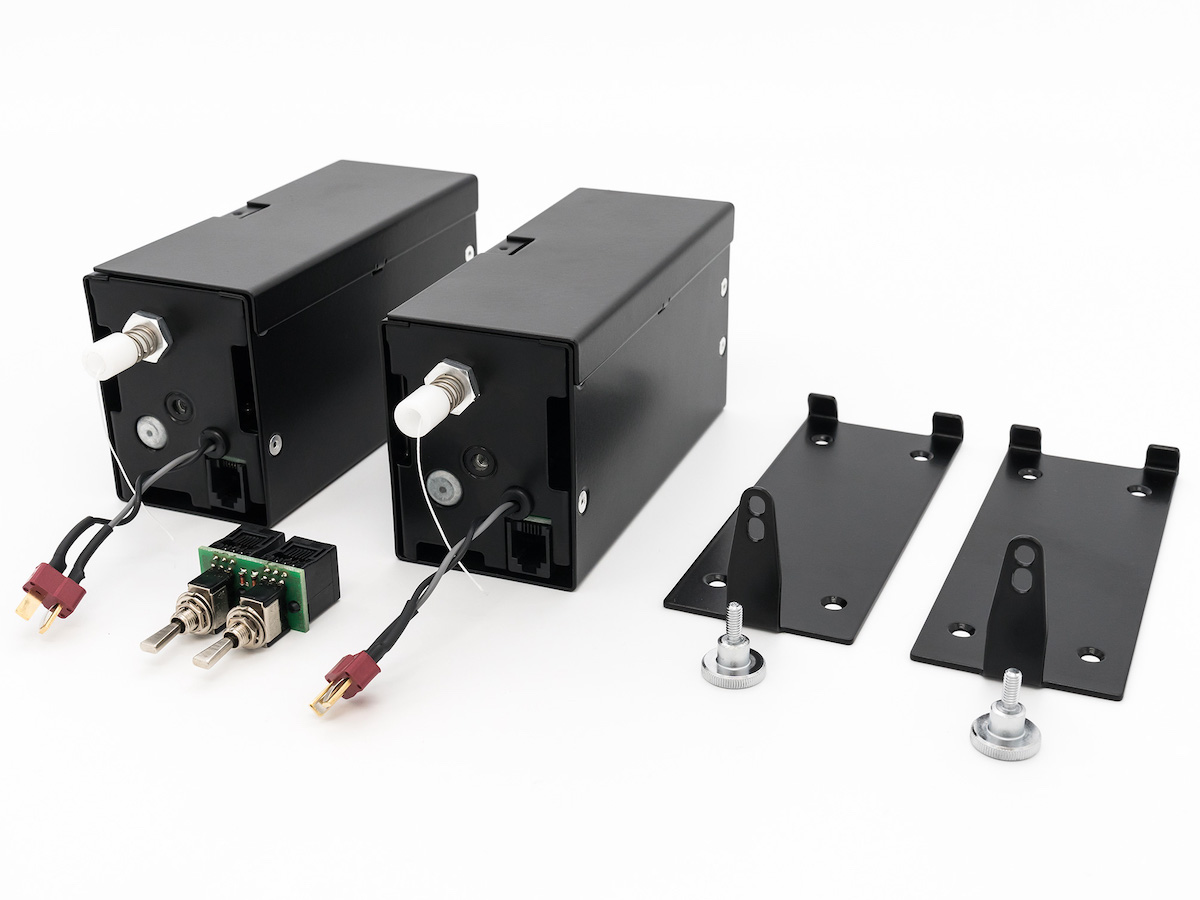

Included in delivery:
- 2 pieces BWS electric winches
- 2 pieces mounting plates no. 1
- 1 (2) double switch for instrument panel installation
- installation kit single (double) seater
- installation and operating manuals
